Tracer ProScribe Tool with Deep Hole Pencil, 6X Replacement Lead Holster

Tracer ProScribe Tool with Deep Hole Pencil, 6X Replacement Lead Holster

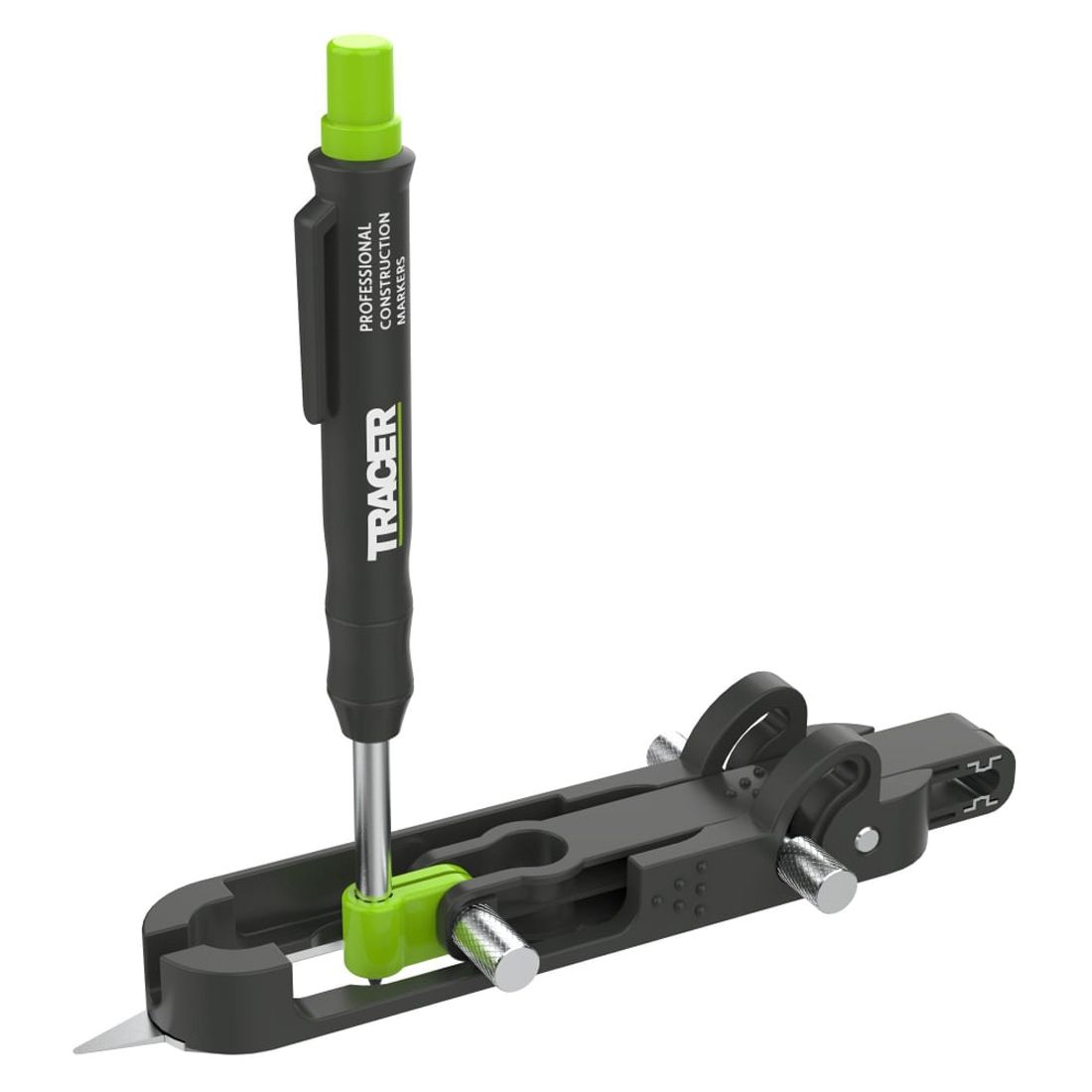

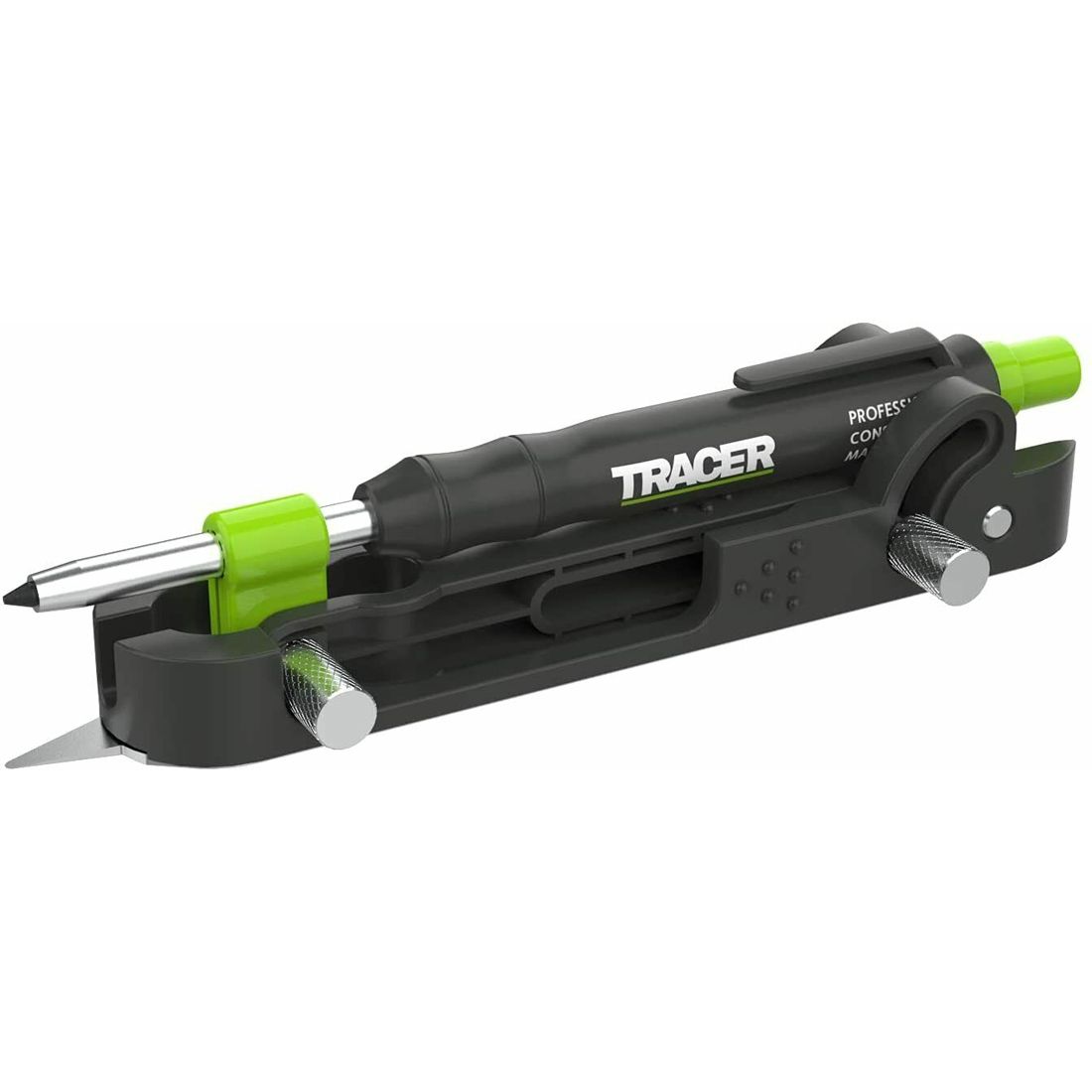

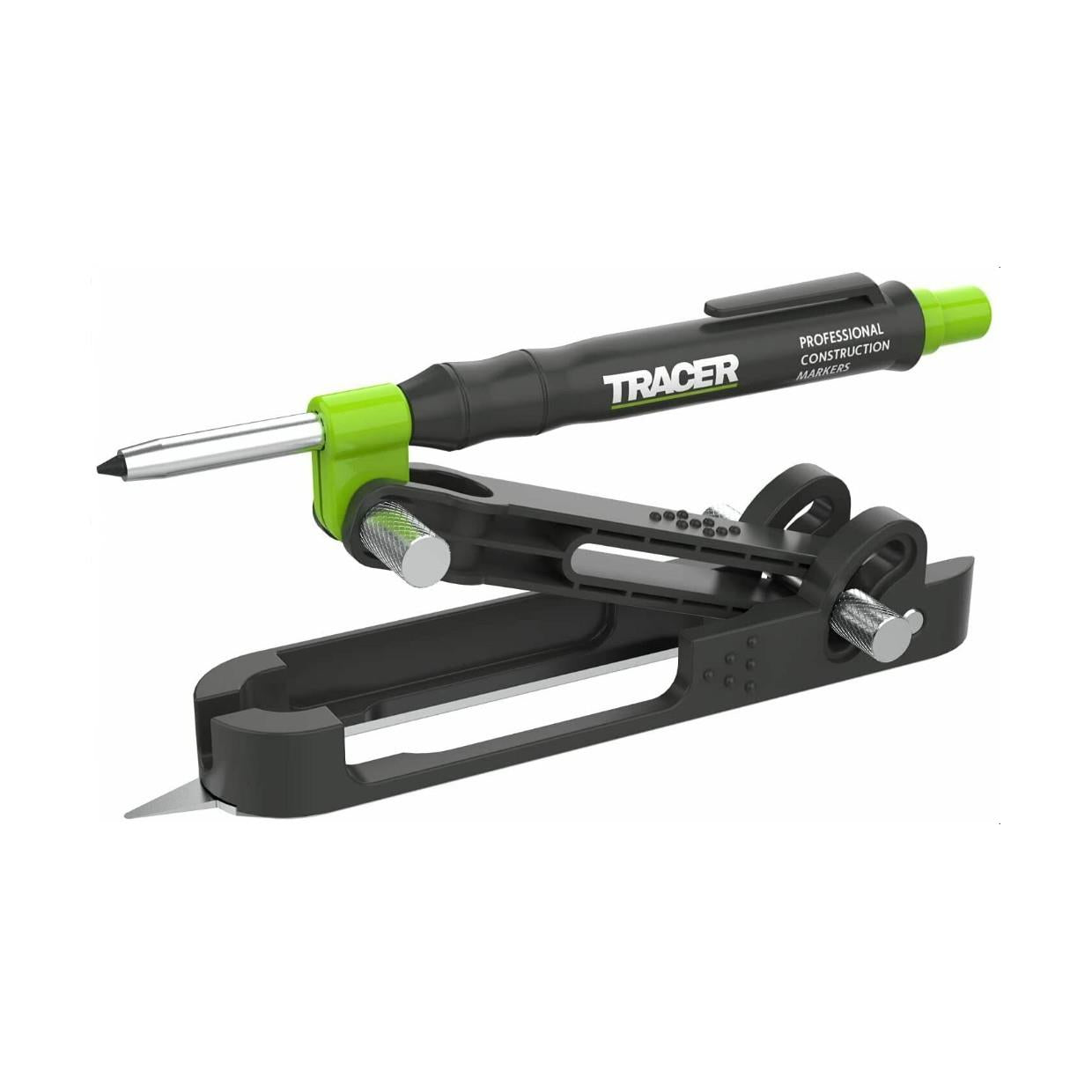

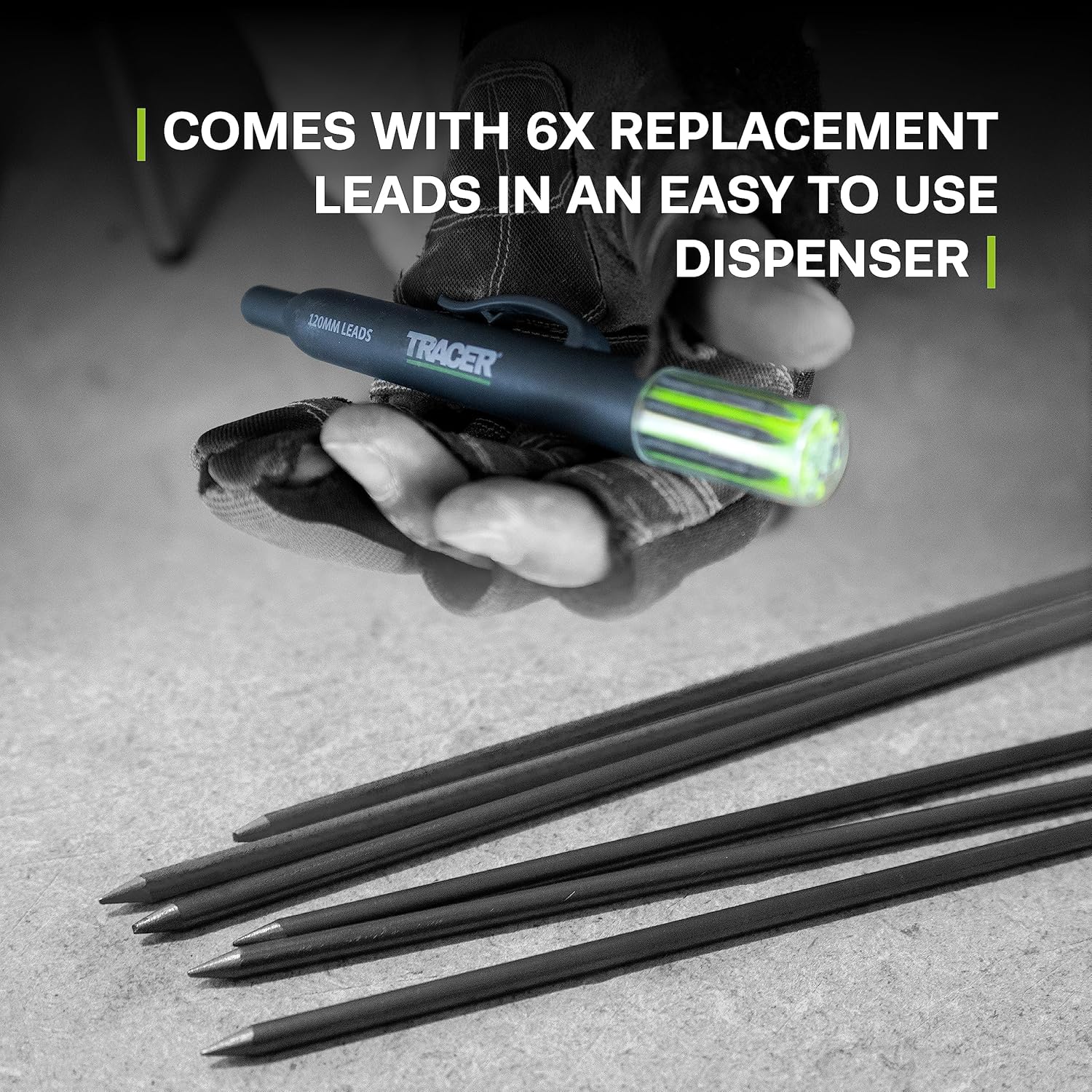

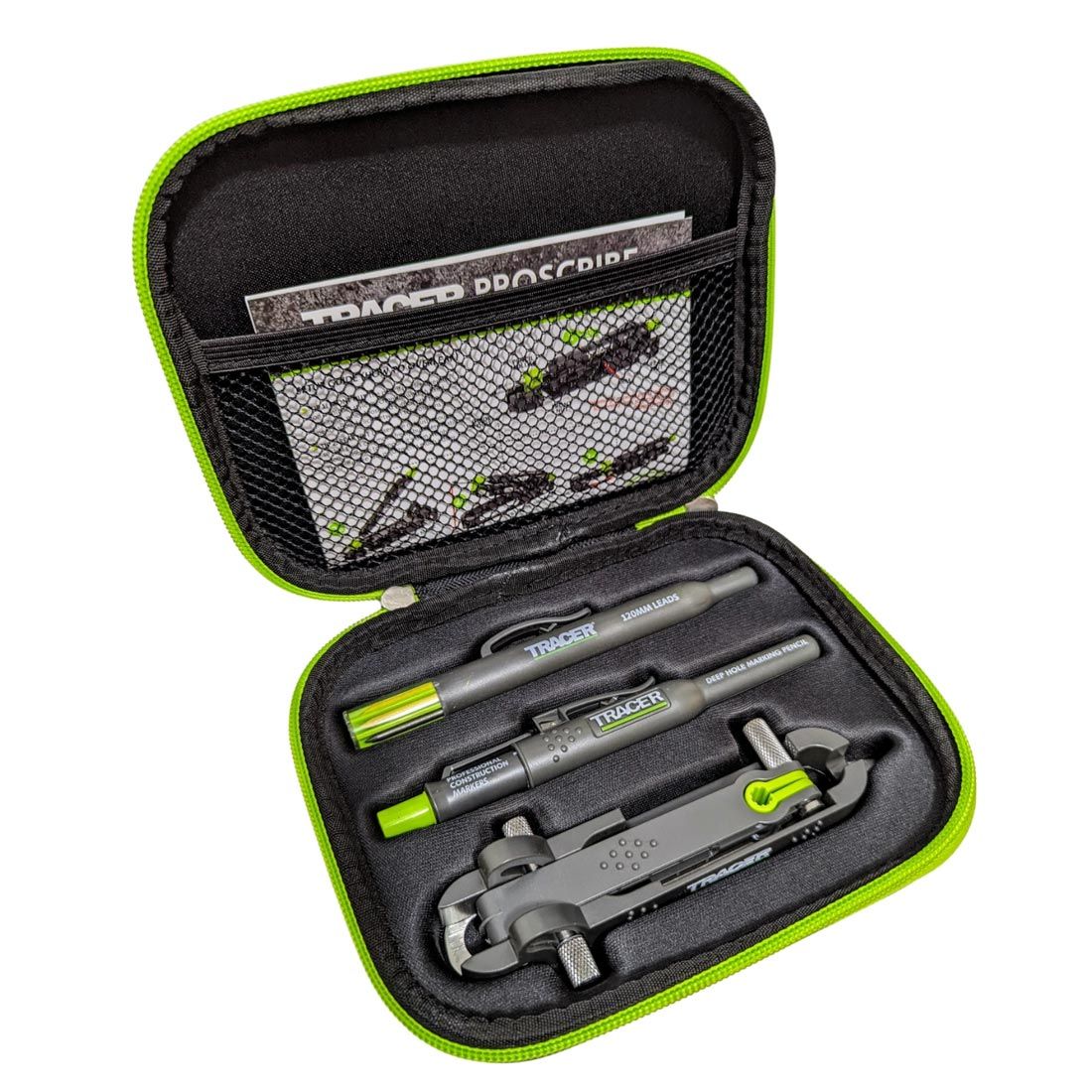

Perfect Marking Kit - This woodworking scribe kit comes with a Tracer woodworking pencil, 4x replacement graphite lead, 2x Yellow alternative lead, and a Tracer Site Holster.

• Machined From Solid Aluminum - Being made of solid aluminum allows this Tracer ProSquare to be robust while remaining lightweight and precise for the user.
• Laser Etched Markings - The Tracer ProSquare includes Com & Jack Scale markings and Hip & Valley Scale markings. All markings are etched with a laser to ensure that the markings don't fade over time.
• Adjustable Locking Arm - This scriber tool comes equipped with a smooth motion lockable arm, either set to the desired angle or set to zero and use as a normal quick square.
• Versatile Adjustability – With up to 16 fixed positions, the Tracer line scribe adjusts effortlessly to suit your workspace, ensuring precision and flexibility for any project.

Parallel Scribing

Adjust the pencil position as per the Setup Guide overleaf to the required o set distance, ensuring the o set distance meets/exceeds the largest gap between the surface being marked, and the guide surface. While Ensuring the guide point face remains in contact with the guide surface, press the pencil lead against the surface to be marked and move the tool laterally to begin marking. Note: depending on the application the top or bottom face of the guide point can be used.

Profile Scribing (Contour)

Adjust the pencil position as per the Setup Guide overleaf ensuring the o set distance meets/exceeds the largest gap between the guide surface and marking surface. While ensuring the guide point is lightly pressed against the guide surface, move the tool laterally to begin marking. Note: To maintain accurate scribing the tool must be perpendicular (90 degrees) to the guide surface at all times! For profiles that are deeper than the guide point, or where longer straight scribing is required the parallel mode may be preferred.
