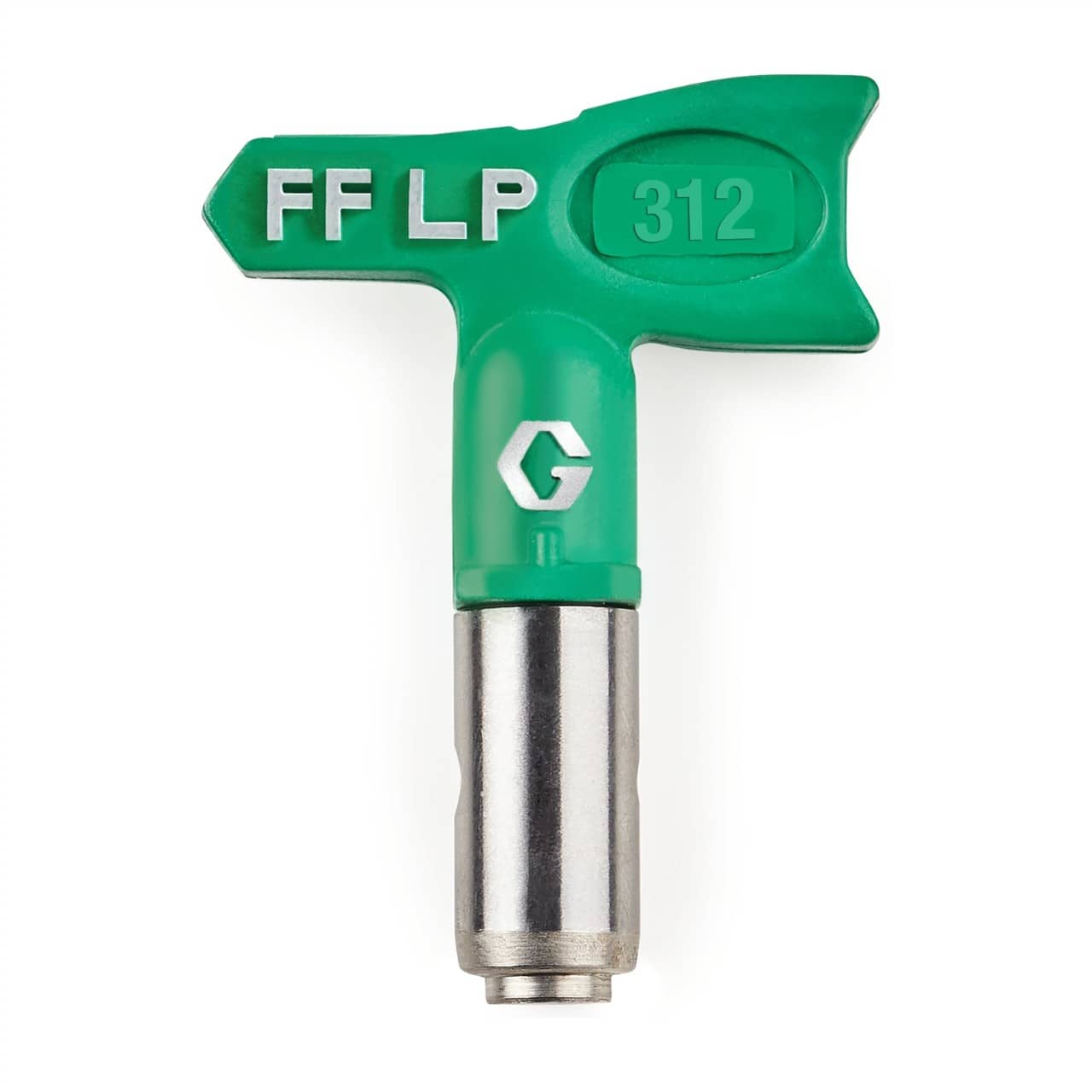

GRACO RAC X FFLP TIP LP 312

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 312 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 6 to 8 inch fan pattern and a 0.012 inch orifice, ideal for thin materials. Reverse the SwitchTip to easily clear clogs.

For fine finish applications

• Less Prep & Cleanup Time
  • Less mess with less overspray
  • Put the paint where you want it
• Easiest Pattern Overlap
  • Softer spray fan pattern
  • Easy to apply any material to any surface
  • Consistent blended finish quality
• Extended Life
  • Spraying at half pressure doubles tip life
  • Reduced sprayer maintenance – up to 2X life
• SmartTip Technology
  • Exclusive internal tip geometry
  • Reduces energy required to atomize paints, stains, and other materials
  • Delivers a superior finish with less pressure
  • Works with SmartControl on select Graco sprayers
• Best Tip on the Market
  • Works with any airless sprayer
  • Longest lasting fan pattern
  • Highest quality finish with a consistent spray pattern
• Easy to Identify Tip Size
  • Large raised tip size numbers are always legible – even when covered with paint
• Superior Tip Design
  • Locking tab ensures tip stays securely in guard
  • Snaps tip in spray or reverse position
  • OneSeal tip gasket installs with no tools
  • Solvent seal available when using extremely hot solvents

Technical Specifications

• Compatible Material – Primer, Stains, Varnish, Water-Based Paint, Enamel, Latex, Solventborne Paints
• For Use With – RAC X HandTite Tip Guard
• Material – Tungsten Carbide
• Maximum Fan Width (in) – 8
• Maximum Flow Rate (GPM) – 0.15
• Minimum Fan Width (in) – 6
• Model – RAC X
• Orifice Diameter (in) – 0.012
• Pattern Size (in) – 6 to 8
• Series –  FF LP SwitchTip
• Spray Pattern – Fan
• Tip Type – Airless
• Type – Spray Tip
