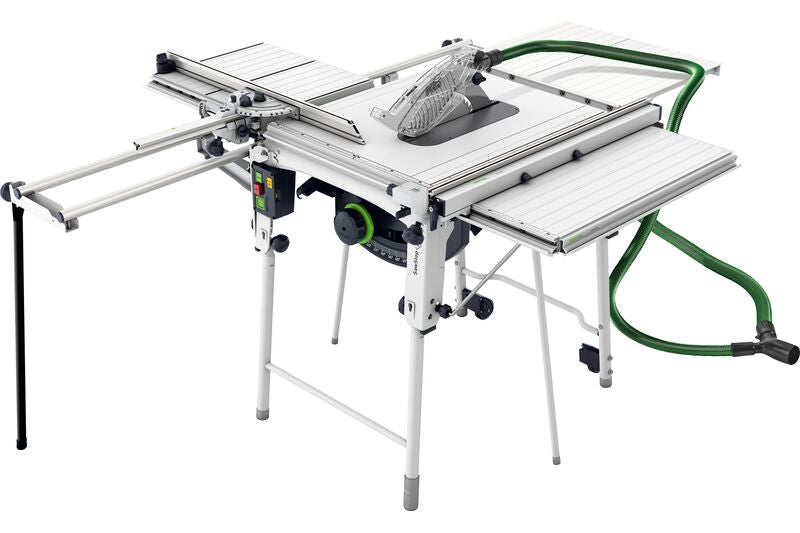

Festool Table saw TKS 80 EBS ST 840-Set

Festool Table saw TKS 80 EBS ST 840-Set

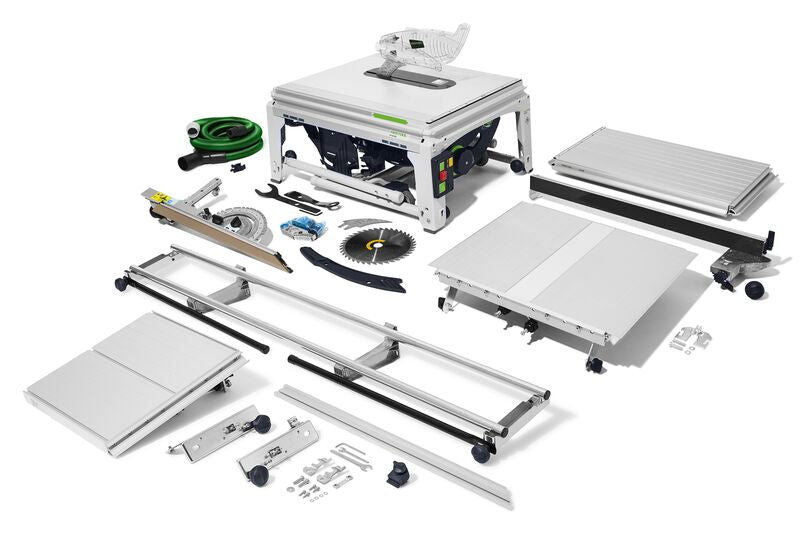

Items included

• 1 open ended spanner, size 23
• 1 open ended spanner, size 50
• angle stop
• circular saw blade WOOD UNIVERSAL HW 254x2, 4x30 W40
• dust extraction set
• extraction table VB TKS 80
• guide extension VL TKS 80
• hex key, WAF 5
• KT-TKS 80 cartridge
• LA TKS 80 stopper
• sliding table ST 840 TKS 80
• workpiece holder

Functions

Your fingers – invaluable!

Every year approximately 4,000 people are injured on circular saws, corresponding to 16 injuries per working day. Around 26% of serious accidents even result in an accident pension (German Social Accident Insurance (DGUV) statistics ‘Accidents at work 2017). With the new TKS 80 table saw, the risk of most serious cutting injuries during sawing is reduced. While you concentrate on your work, we protect your most valuable tools – your fingers.

• Improved safety: Less risk for your fingers - The responsive sensor on the integrated SawStop AIM technology provides increased safety when sawing in non conductive materials.SawStop AIM technology can also be deactivated if necessary
• Flexible: 80mm cutting height, extendable work surface, stopper and angle stop enable flexible work, even with large workpieces
• Splinter free cuts: Fewer splinters on the upper surface of the material in mitre rip cuts by swivelling the saw blade to the left

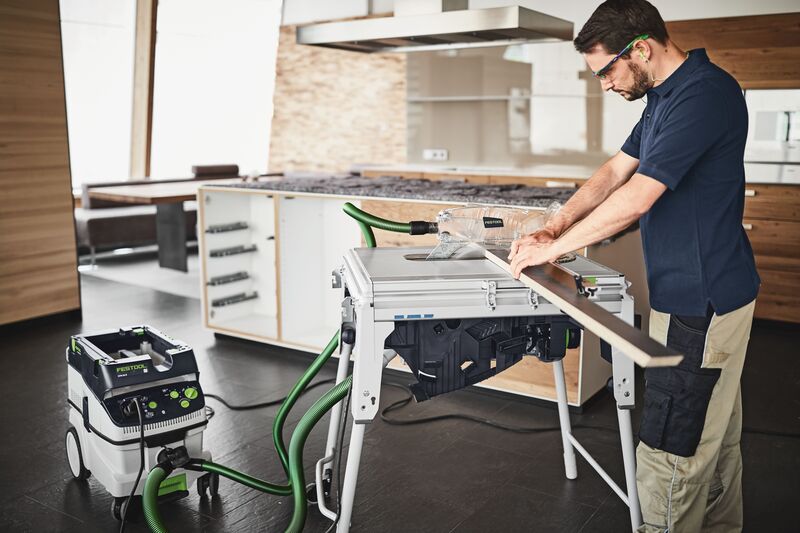

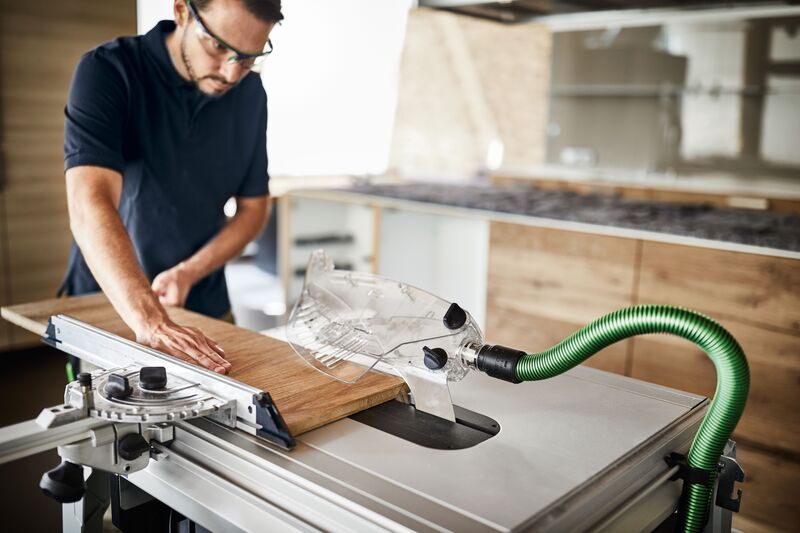

• Protects your health: Dust extraction attachment with CLEANTEC extraction sleeve for dust free work and a free view of the workpiece
• Space saving: Tool garage attached on the side provides optimal storage space for saw blades, cartridges and push sticks

Product highlights

• We protect your fingers!

  The first Festool saw with innovative SawStop AIM technology for greater safety while sawing. If the saw blade comes in to contact with the user's skin, it stops immediately and disappears into the work surface – the risk of extremely serious cutting injuries is reduced.

• Splinter-free cuts:

  Fewer splinters on the upper surface of the material in mitre rip cuts by swivelling the saw blade to the left.

• Flexible to use:

  Variable work up to a cutting height of 80 mm, a work surface that can be extended in its length and width, and improved flexibility thanks to the angle stop.

Usage

Main applications

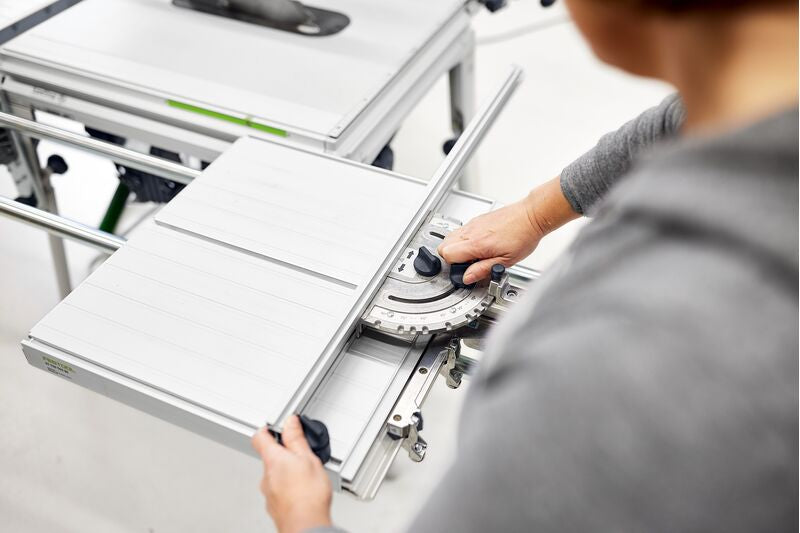

• Cross cuts up to a width of 840 mm with sliding table, at a cutting depth of 20 mm

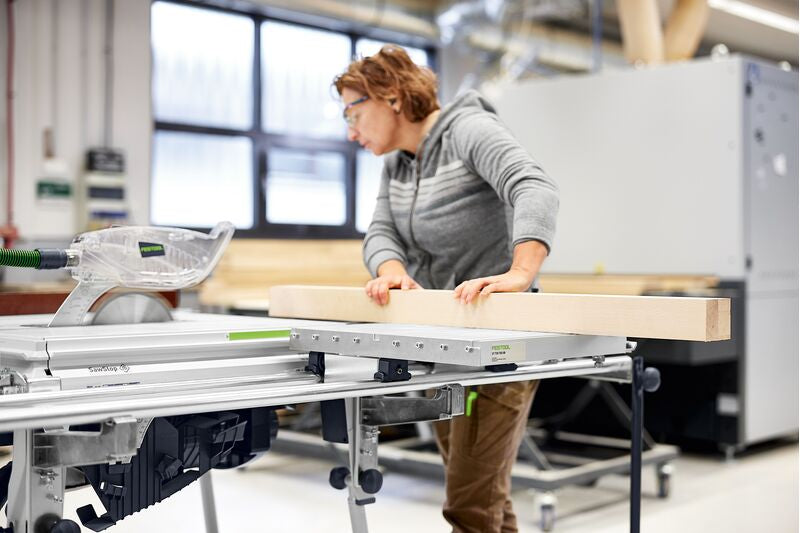

• Rip cutting up to a cutting height of 80 mm and a width of 600 mm with an extension table
• Tilting saw blade for angled cuts between -2° and 47°

Technical Data

• Power consumption – 2 200 W
• Idle engine speed – 1700 - 3500 min⁻¹
• Saw blade diameter – 254.00 mm
• Cutting height 90°/45° – 80/56 mm
• Inclination – -2 / 47 °
• Table dimensions – 690 x 580 mm
• Table height, legs folded away – 385.00 mm
• Table height, legs unfolded – 900.00 mm
• Dust extraction connection diameter – 27/36 mm
• Cable length – 4.00 m
• Product weight without accessories – 38.40 kg
• Drive type – Mains
