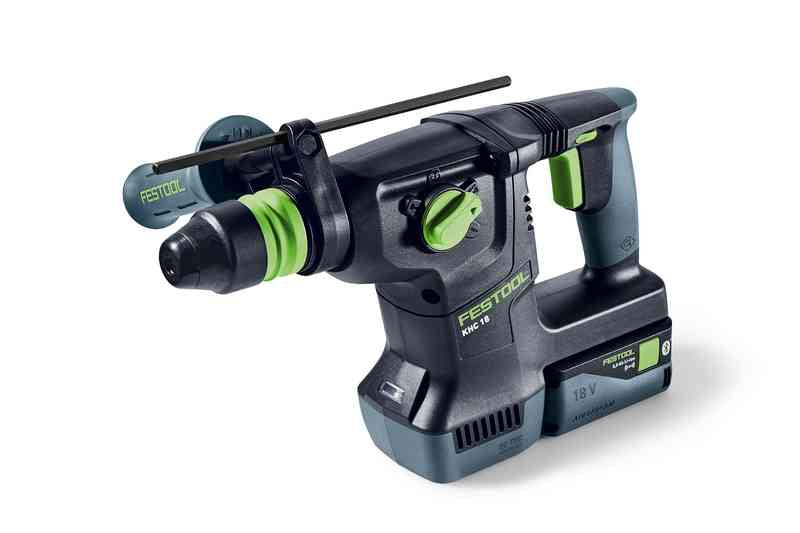

Festool Cordless rotary hammer drill KHC 18 5,0 EBI-Plus

Festool Cordless rotary hammer drill KHC 18 5,0 EBI-Plus

Functions

Powerful and versatile. Like your work.

The KHC 18 cordless rotary hammer drill is durable, extremely resilient and long-lasting – thanks to the powerful brushless EC-TEC motor and pneumatic hammer mechanism. 2.6 joules of impact energy gives you a quick result. No matter whether hammer drilling, drilling and screwdriving without impact or chiselling, you can switch between a variety of applications in seconds. The SDS-Plus chuck is exchanged for the keyless chuck in no time at all. With the dust extraction device, as a practical accessory, you reduce dust with every application. And by integrating it into the clever system of extractor and Bluetooth® remote control, you can work even more conveniently with low dust.

• Powerful: Thanks to the powerful brushless EC-TEC motor and pneumatic hammer mechanism, 2.6 joules of impact energy ensure fast drilling progress and a good material removal rate when chiselling.
• Variety of applications: Suitable for hammer drilling, chiselling and drilling without impact. Tighten and loosen screws by changing the direction of rotation.
• Versatile: SDS-Plus chuck and keyless chuck allow the use of a wide range of tools.
• Sophisticated: Depth stop for exact setting of the drilling depth, LED light for optimum visibility, scaffold hook for secure fastening.
• Convenient extraction: The practical dust extraction device (available as an accessory) fits every application and fits into the clever Festool extraction system with mobile dust extractor.
• Safer: The electronic KickbackStop minimises the risk of injury if the drill suddenly becomes caught. The safety lock prevents the machine from starting unintentionally.
• Effortless work: Due to vibration-cushioned and ergonomic handle.
• Robust: Brushless, maintenance-free EC-TEC motor for a long service life.
• 18 V Bluetooth® battery packs: 5.0 Ah Bluetooth® battery packs included in the scope of delivery are compatible with all machines and chargers in the Festool 18 V range. And can be combined perfectly with the extractor remote switch-on – machine on, extractor on
• Covered: fully covered by Festool Service upon registration within 30 days of purchase.

Product highlights

• Powerful with 2.6 joules of impact energy.

  Achieve your objective effortlessly: Brushless EC-TEC motor and pneumatic hammer mechanism ensure fast work progress when drilling and chiselling in concrete, stone and masonry. The combination of 2.6 joules of impact energy, vibration damper and ergonomic handle supports you in demanding applications.

• All-rounder with chisel function.

  Versatile applications, just as you need them: Hammer drills, drill bits and chisels are picked up with the SDS-Plus chuck. And for drilling and screwdriving without impact in wood and metal, you can switch to the keyless chuck in seconds.

• Low dust with a clever system.

  Because clean working is healthier: The sophisticated dust extraction device (available as an accessory) fits every one of your applications and fits into the clever Festool extraction system. Simply connect it to the extractor and work with low dust. And for extra convenience, switch the mobile dust extractor on and off via the Bluetooth® battery pack or the remote control.

Product details

• Achieve results more quickly

  2.6 joules of impact energy ensures a good material removal rate for chiselling work and fast drilling progress for hammer drilling. Ideal for hammer drilling in concrete up to diameters of 18 mm (maximum dia. of 26 mm possible).

• Wide range of applications

  Suitable for hammer drilling, chiselling and drilling without impact. Easily switch between applications with the function switch. Change the direction of rotation to loosen and tighten screws.

• Two chucks – versatile applications

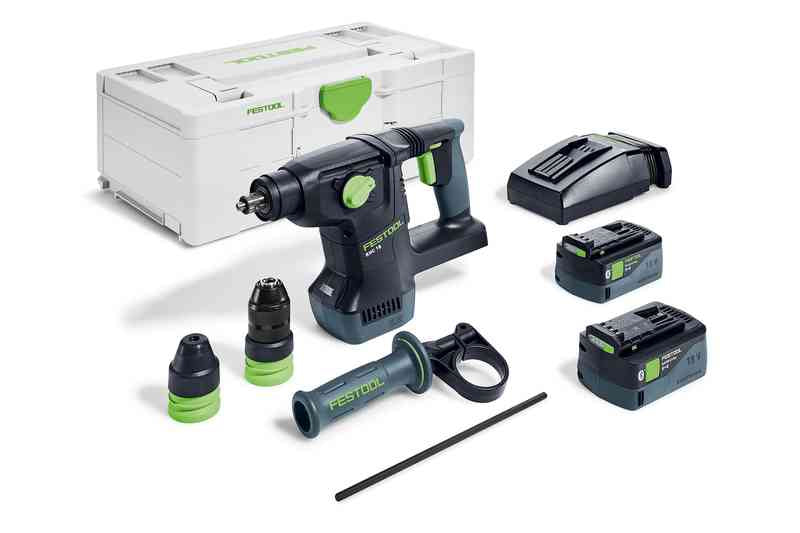

  The KHC 18 offers a wide range of functions, thanks to tool-free chuck replacement. Hammer drills, drill bits and chisels are picked up with the SDS-Plus chuck. The keyless chuck additionally extends the range of possible insertion tools to include, for example, drills with a cylindrical shank, or drills, bits and bit holders with a hex shank.

• Long-lasting and powerful

  The brushless EC-TEC motor is wear-free and converts the energy from the battery into optimum power with virtually no losses.

• Low dust in the system

  Simply combine the KHC 18 with the sophisticated dust extraction device (available as an accessory) and benefit from the entire Festool extraction system. The dust extraction device is simply fixed to the depth stop and connected with the extractor. Bluetooth® battery packs communicate with the Bluetooth® module on the CLEANTEC mobile dust extractor (can be retrofitted as an accessory for CT 26/36/48) and automatically start the mobile dust extractor when the cordless tool is switched on.

• For greater safety when working

  The electronic KickbackStop prevents your wrist from twisting dangerously if the drill suddenly becomes caught or jammed, therefore ensuring improved safety when working.

• Gentle work

  The vibration damper absorbs and eliminates energy before it can be transferred to the hands of the user. The combination with an ergonomic handle provides additional support for powerful applications.

• Exact working

  Simply mount the depth stop on the auxiliary handle and adjust it without tools.

• Drill with pinpoint accuracy

  The innovative SDS hammer drills (optionally available) enable precise positioning thanks to their sharp 90° centring point. The solid carbide head ensures an extremely long service life, especially when drilling into reinforced concrete.

• Optimal lighting

  The integrated LED light permits precise work even in dark corners.

• Store securely

  The safety lock prevents the machine from starting unintentionally. Fastened to the scaffold hook, the KHC rotary hammer drill is optimally protected against falling, even at airy heights.

• Festool 18 V Bluetooth® battery packs

  The 5.0 Ah Bluetooth® battery packs included in the scope of delivery are compatible with all machines and chargers in the Festool 18 V range. And can be combined perfectly with the extractor remote switch-on – machine on, extractor on.

Usage

Main applications

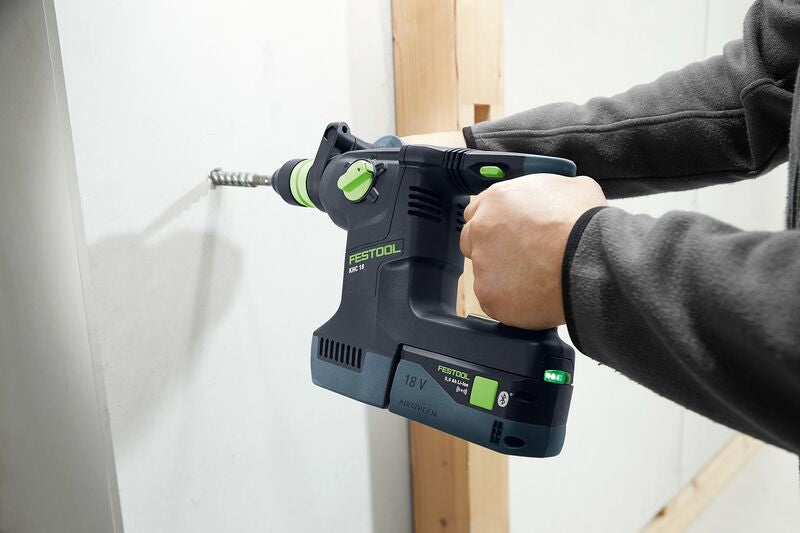

• Ideal for hammer drilling up to a diameter of 18 mm in concrete, stone and masonry (maximum diameter of 26 mm possible)

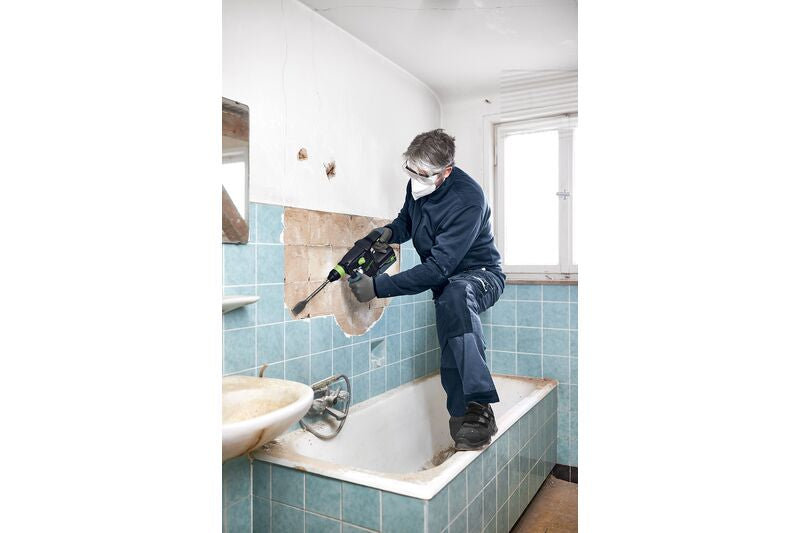

• Also suitable for light chiselling work such as knocking off plaster, filler or floor tiles; smaller openings and slots in sandstone and masonry
• Versatile applications thanks to exchangeable SDS-Plus chuck and keyless chuck. It is therefore ideally suited to hammer drilling, chiselling, drilling without impact and screwdriving
• Fastening of construction elements to concrete and masonry with jointing means (dia. > 10 mm) e.g. heavy-duty anchors, concrete screws
• Fastening of scaffolding, steel components, wooden structures e.g. thresholds, posts
• Fastening of substructures, ceiling suspensions and other elements (dia. 5–10 mm) to concrete and masonry
• Fastening of kitchen cabinets, wall shelves, sound insulation elements, drywalls, skirting boards
• Drilling and screwdriving without impact, such as when spot-drilling floor tiles
• Drill holes in wood up to dia. 30 mm, steel up to dia. 13 mm and other materials

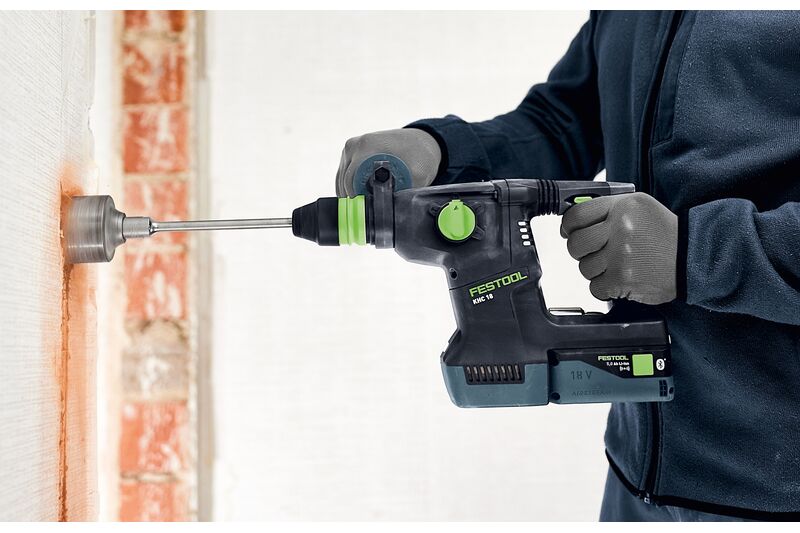

• Electrical socket cutting up to Ø 68 mm in lime sand brick and masonry
• Mixing smaller quantities of mortar, plaster or paint with a stirring rod
• Working with dust extraction – Bluetooth® battery pack automatically starts Bluetooth®-compatible mobile dust extractor in AUTO mode

Technical Data

• Battery voltage (rated voltage) – 18 V

• Idle engine speed – 0 - 980 min⁻¹

• Idle stroke rate – 0 - 4.350 min⁻¹

• Impact energy – 2.60 J

• Max. drilling diameter in concrete – 26.00 mm

• Max. drilling diameter in steel – 13.00 mm

• Max. drilling diameter in wood – 30.00 mm

• Tool holder – SDS-Plus

• Chuck range – 1.5 - 13 mm

• Compatible with battery packs from the series – BP 18

• Battery capacity – 5.00 Ah

• Technology – Bluetooth®

• Drive type – Battery

• Product weight without accessories – 2.70 kg

• Transport weight incl. accessories – 8.40 kg
