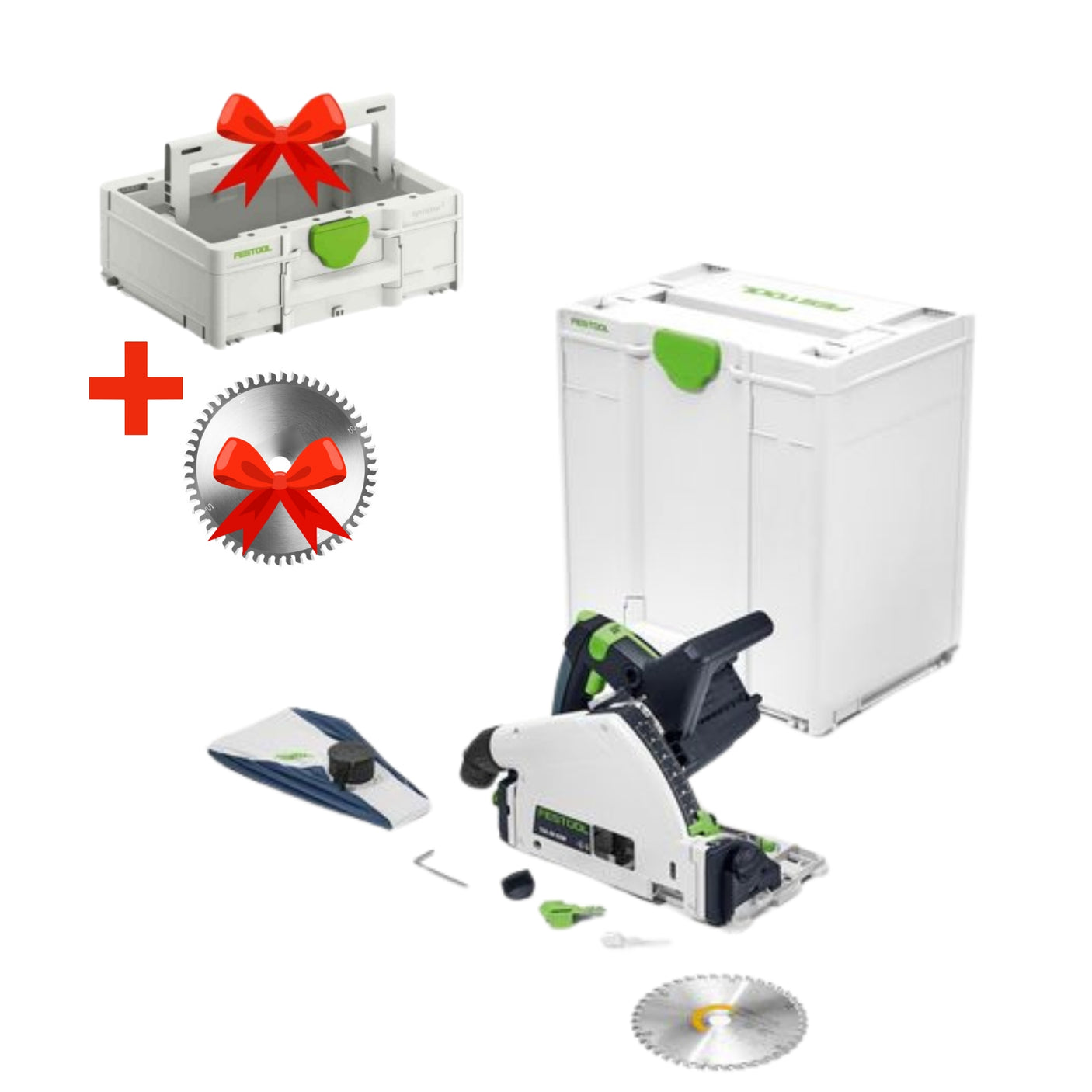

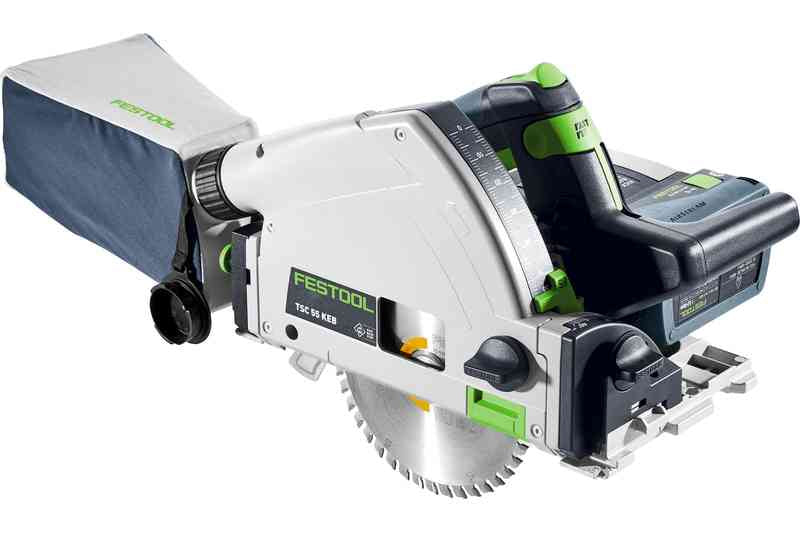

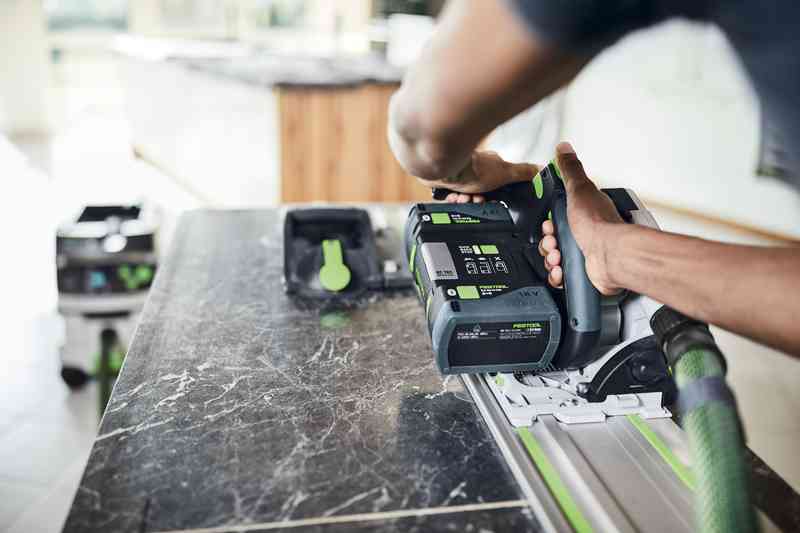

Festool Cordless plunge-cut saw TSC 55 KEB-Basic

Product highlights

• No more dangerous kickbacks.

  The best cordless plunge-cut saw is now even safer: The unique KickbackStop not only protects your workpiece but also minimises the risk of injury to your hands. In the blink of an eye, it reduces the risk of injury from kickback when sawing and plunging the tool into the workpiece.

• Saws twice as fast More durable.

  Thanks to our new generation of saw blades and the concentrated torque of our cordless plunge-cut saws, you will be able to work up to twice as fast with an extended battery range. Maximum cutting performance meets perfect cutting quality.

• Full power – cordless.

  No noticeable difference – the combination of a brushless EC-TEC motor and dual battery system (2 x 18 V) makes the new TSC as impressively powerful as a mains-powered machine, while maintaining full mobility.

Product details

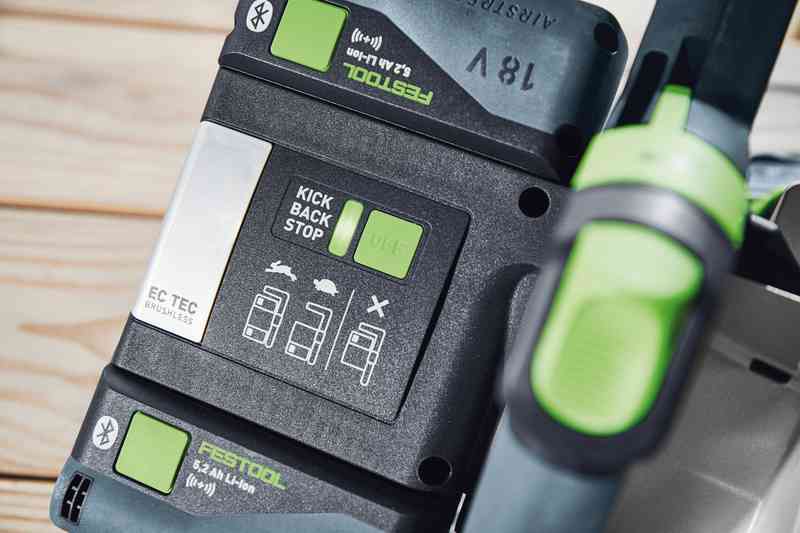

• Improved safety thanks to unique KickbackStop

  The integrated KickbackStop reduces the risk of injury from kickback when sawing or plunging the tool into the workpiece. Once the saw has been triggered, it is ready for immediate use without having to replace any parts or additional costs.

• Exceptional torque:

  The concentrated torque of our plunge-cut saw enables work progress at up to twice the speed with an increased saw blade service life. Our new generation of saw blades impresses users when combined with maximum cutting performance and perfect cutting quality.

• Greater power and endurance

  The lithium-ion batteries and the brushless EC-TEC motor with maximum efficiency provide maximum cutting performance and exceptional durability.

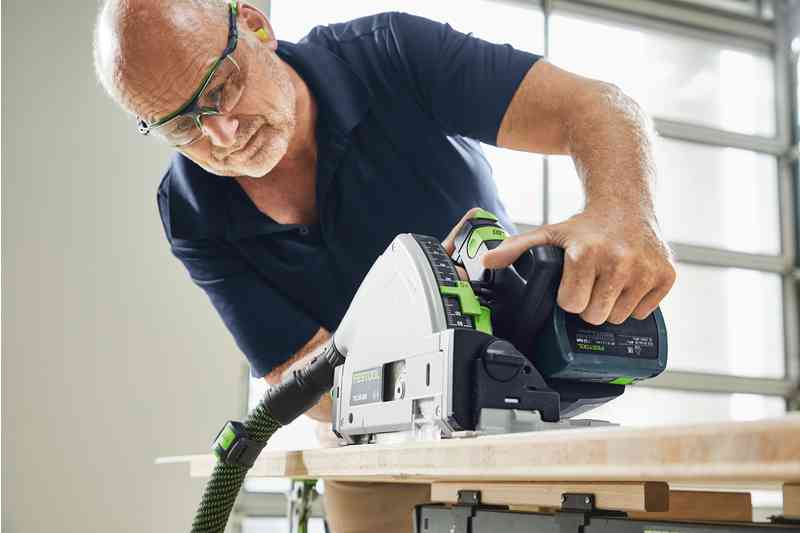

• Low-dust mobile working

  We have two ways of protecting health: Whether with a dust collection bag or an extractor with Bluetooth® automatic switch-on – the Festool extraction system ensures virtually dust-free work.

• Flexible use by switching off the KickbackStop

  The KickbackStop can be manually deactivated, for example when working without a guide rail on uneven material. The advantage: The KickbackStop is automatically reactivated the next time the saw is switched on.

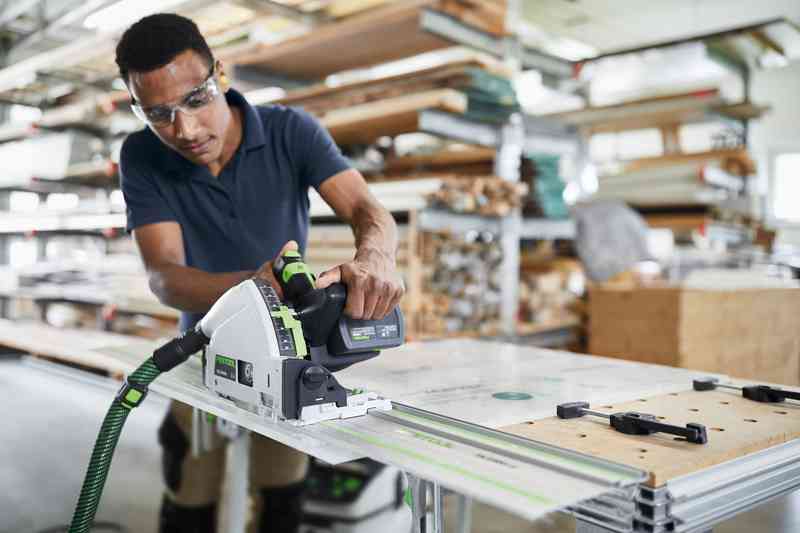

• Precise and healthy working with a system

  Combined with our guide rails, a wide range of saw blades, the adapted extraction system, saw table, angle stop and splinter guard, we offer a top-class sawing system.

• Perfect cuts reduce the need for reworking

  With the clip-on splinter guard in combination with the guide rail, it is even possible to saw on both sides without virtually any splinters.

• Best orientation for plunge cuts

  Transparent sliding viewing window and the additional markings for the starting and end point provide a good view of the saw blade.

• Angle setting from -1° to 47°

  The angles 0° and 45° can be selected directly using the locking positions. Undercuts are also possible with the extended adjustment option from -1° to 47°.

• Exact cuts, even at an angle

  The TSC 55 enables precise work. The cutting edge from 90° to 47° remains unchanged even when the saw swivels.

• Maximum flexibility

  The slimline housing allows users to make cuts up to the edges and in close proximity to the wall (12 mm).

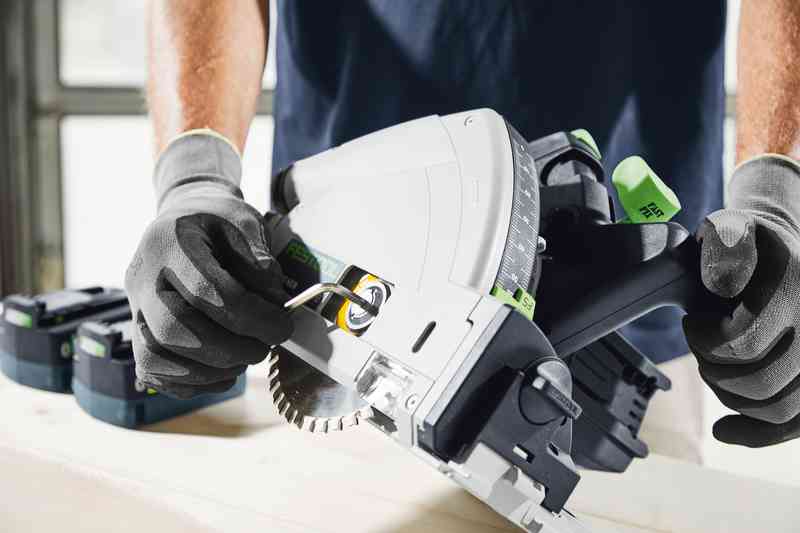

• FastFix saw blade changing system

  Always adapted to the working material. The FastFix spindle stop makes it extremely easy to change the saw blade. The correct saw blade is fitted in just a few steps and the sawing speed is adapted to the material.

• Exact depth setting

  Easy to read and adjust: The dual cutting depth scale for working with or without a guide rail. Now even easier thanks to extra large font and precision adjustment.

• More options thanks to control electronics

  Our fitted control electronics enable speed control for temperature monitoring, a quick-acting brake and perfect adaptation to the material.

• Charges two batteries at the same time

  Ideal for the TSC 55 K 18 V dual battery system. On its two spaces, the DUO rapid charger charges two batteries at the same time.

• 2 x 18 V for greater endurance and range

  The dual battery system with flexible configuration options for using one (at least 18 V) or two battery packs (max. 36 V). For maximum power or minimum weight.

Usage

Main applications

• Precise circular in materials up to 55 mm thick
• Cutting interior doors to length using guide rail and circular saw
• Cutting recesses in doors and kitchen worktops
• Manufacturing expansion joints in parquet flooring and false joints
• Cutting chipboard to size

Technical Data

• Battery voltage (rated voltage) – 2 x 18 V
• Idle engine speed – 2650 - 3800/5200 min⁻¹
• Saw blade diameter – 160.00 mm
• Angular range – -1 - 47 °
• Cutting depth – 0 - 55 mm
• Cutting depth 45° – 43 mm
• Dust extraction connection diameter – 27/36 mm
• Battery capacity – 5.00 Ah
• Product weight without accessories – 3.60 kg
• Transport weight incl. accessories – 11.20 kg
• Drive type – Battery
• Technology – Bluetooth®

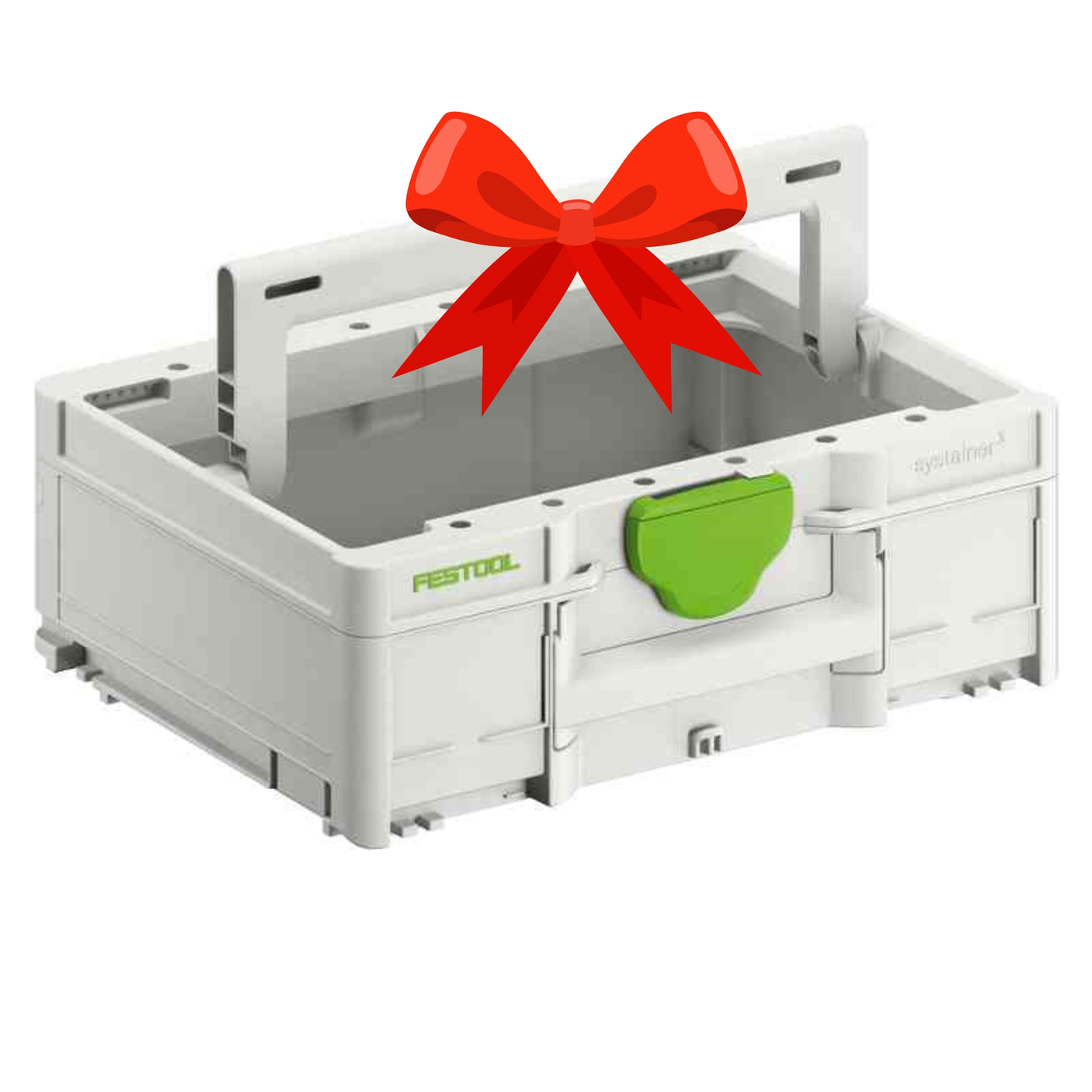

+Gift Systainer³ ToolBox SYS3 TB M 137

Functions

The open Systainer for instant access.

Open at the top, reduced to the bare essentials and designed for quick access to the hand tools, consumables and accessories. And perfectly matched to the Systainer system: Systainer³ ToolBoxes can be connected to each other, as well as to all Systainer generations and mobile dust extractors.

• Spacious compartment and foldable carrying handle for quick access to tools
• Robust design, made from high-quality plastic, load capacity of up to 20 kg
• Can connect to the Systainer system thanks to T-LOC
• in standard format with proven base area
• for practical transportation of hand tools, consumable materials and accessories

Product highlights

•  100% mobile.

  From a stationary workshop to the place of use – Systainer³ goes mobile. To make transport simple,ToolBox can also be seamlessly integrated into bott vehicle equipment.

• Simply practical.

  Machines, accessories and consumables are optimally protected, clearly stored and easy to transport in the robust ToolBox. The foldaway handle saves space and stays out of the way if large items need to fit in the ToolBox.

• Systems get it done:

  Systainer³ ToolBoxes can be connected to each other, to all Systainer generations and to mobile dust extractors and are compatible with many other system accessories.

Usage

Main applications

• Can be connected to one another and to different generations
• Compatible with transport systems and mobile dust extractors
• Enable organisation, an overview and professional appearance

Technical Data

• Dimensions with adjustable legs (L x W x H) – 396 x 296 x 137 mm
• Volume – 10.40 l
• Load capacity – 20.00 kg
• Load capacity (connected) – 40.00 kg
• Product weight without accessories – 1.30 kg
