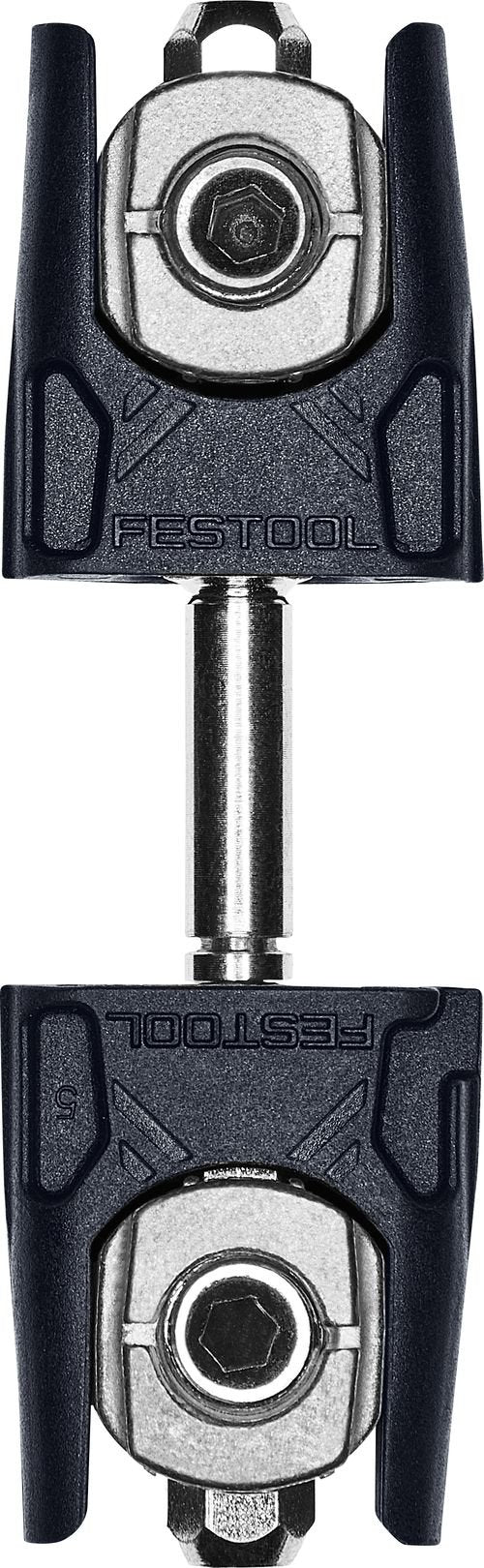

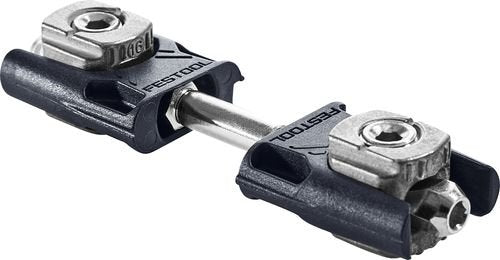

Festool Connecting fitting for horizontal assembly MSV-LR32 D8/25 0.939 kg

FESTOOL  |  SKU: 203169
€92,47 (180,86 лв.) €100,51 (196,58 лв.)

Данъкът е включен. Доставката се изчислява при плащане.

Festool Connecting fitting for horizontal assembly MSV-LR32 D8/25 is backordered and will ship as soon as it is back in stock.

💡 Important to know:

Products in the cart are not automatically reserved. Due to dynamic availability, some items may run out before we begin processing your order.
If this happens, we will notify you as soon as your order begins processing.

The perfect connection. The universal panel and furniture connectors for the DOMINO DF 500 dowel jointer.

Strengths and benefits

  • The clever DOMINO system enables very easy and precise positioning of connections, making additional stops and positioning aids unnecessary. For efficient and fast work
  • The large clamping range and long bolts of the connector parts greatly simplify furniture construction. Cabinet assembly is also no problem
  • Functional fastening elements with protectors protect each furniture component from scratches
  • Milling and cutting tolerances up to 1.4 mm are seamlessly compensated by the trim
  • The new detachable panel and furniture connectors DOMINO are excellent for board thicknesses from 18 to 28 mm

Product application

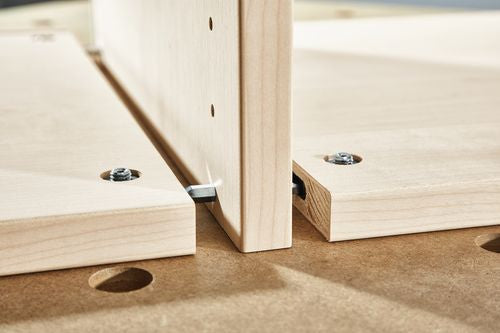

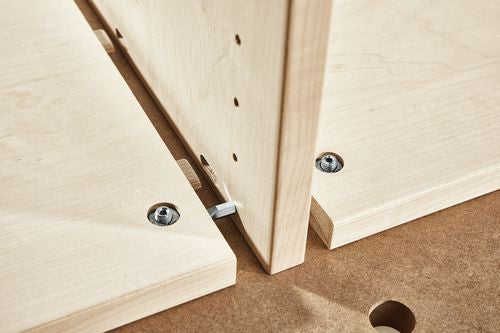

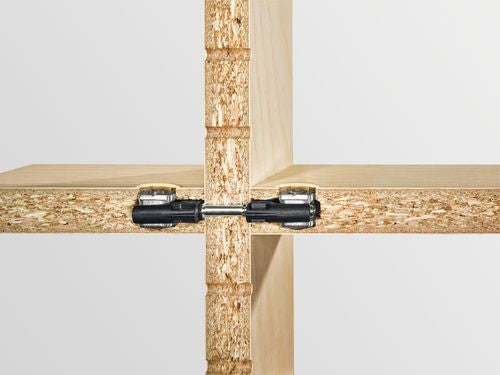

  • Detachable connection of the central panel between a row of holes and DOMINO cut-out
  • Furniture manufacturing
Note

  • for DF 500, DF 500 R, DFC 500
  • for 25 central connections with DF 500 and drilling rows of holes
  • Drilling template required for drilling boards for DOMINO joint D8 mm
  • DOMINO / LR 32 connector MSV-LR 32 D8/25 is positioned both on the cabinet side in a row of 5 mm through holes and in the bottom of the structure with the DOMINO dowel jointer DF 500
  • without caps

Scope of supply

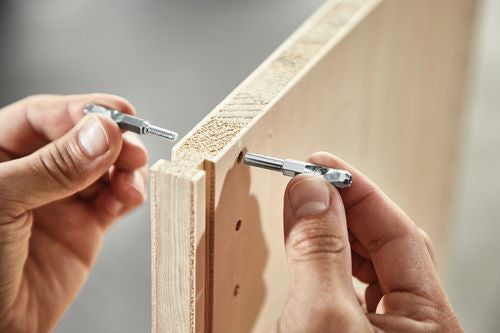

25 x male threaded bolt MSV, 25 x female threaded bolt MSV, 50 x plastic seal, 50 x angled sleeve with threaded pin

All-inclusive guarantee--> Find out more

Accessories

  • Drilling template BS-KV D15 (203164)
  • Fitting drills KVB-HW D15 CE (203165)
  • Systainer³ SORT-SYS3 M 137 DOMINO (576796)

Consumables

  • DOMINO dowels beech D 8x36/130 BU (203175)
  • Cap KV-AK D15 brn/50 (203171)
  • Cap KV-AK D15 slr/50 (203172)
  • Cap KV-AK D15 wht/50 (203173)
  • Cap KV-AK D15 gr/50 (203174)
