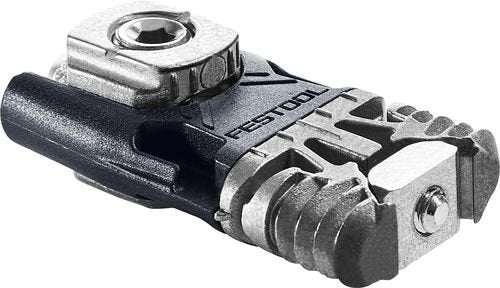

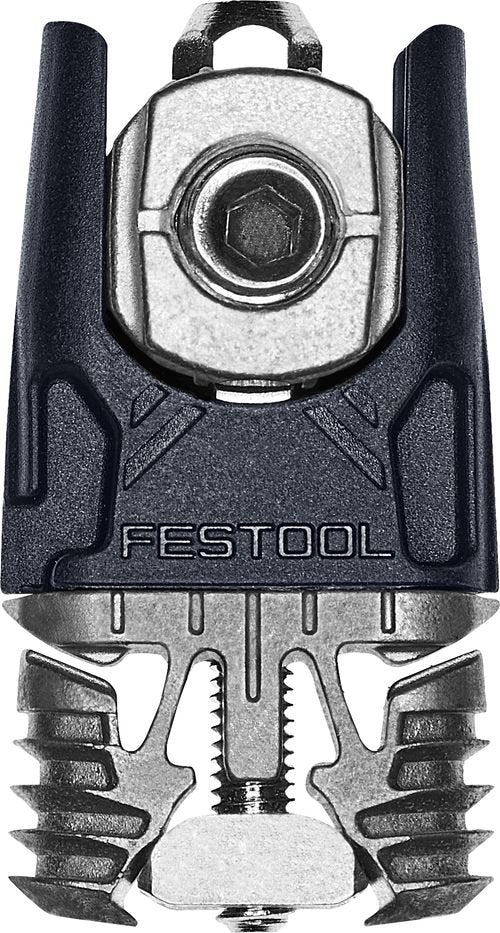

Festool Corner joint KV D8/50

The perfect connection. The universal cabinet and furniture connectors for the DOMINO DF 500 dowel jointer.

Strengths and benefits

• The clever DOMINO system enables very easy and precise positioning of connections, eliminating the need for additional stops and positioning aids. For efficient and fast work
• The large clamping range and long tightening bolts of the connecting parts greatly simplify furniture construction. This also makes building cabinets hassle-free

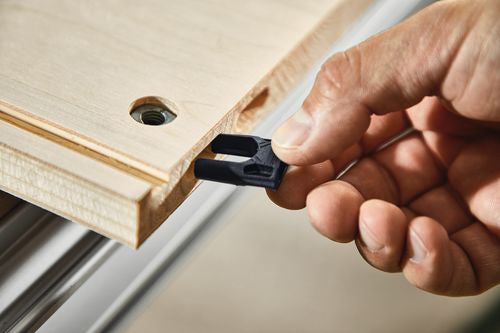

• Functional fastening elements with protectors prevent each furniture component from being scratched
• Milling and cutting tolerances of up to 1.4 mm are seamlessly compensated by the trim
• The new detachable cabinet and furniture connectors DOMINO are excellent for board thicknesses from 18 to 28 mm

Product application

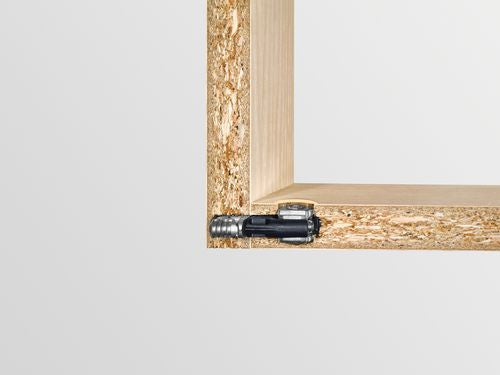

• Detachable corner connection with the DOMINO jointer
• Furniture manufacturing

• for DF 500, DF 500 R, DFC 500
• for 50 corner joints with DF 500

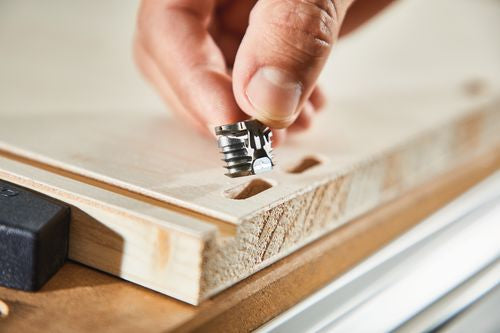

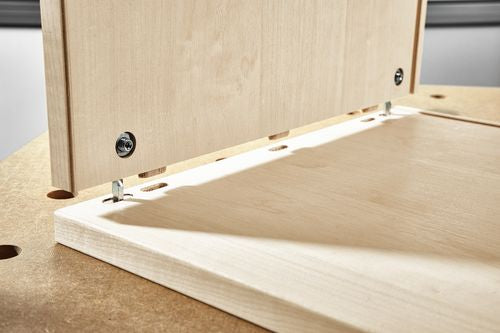

• The DOMINO / DOMINO KV D8/50 connector is positioned both on the cabinet and at the bottom of the structure with the DOMINO dowel jointer DF 500
• without cover caps

Scope of delivery
50 x Sleeve, 50 x Threaded bolt M4, 50 x Plastic seal, 50 x Corner sleeve with threaded pin

All-inclusive guarantee--> Find out more

Accessories

• Drilling template BS-KV D15 (203164)
• Hardware drill bits KVB-HW D15 CE (203165)
• Systainer³ SORT-SYS3 M 137 DOMINO (576796)

Consumables

• DOMINO dowels beech D 8x36/130 BU (203175)
• Cover cap KV-AK D15 brn/50 (203171)
• Cover cap KV-AK D15 slr/50 (203172)
• Cover cap KV-AK D15 wht/50 (203173)
• Cover cap KV-AK D15 gr/50 (203174)
