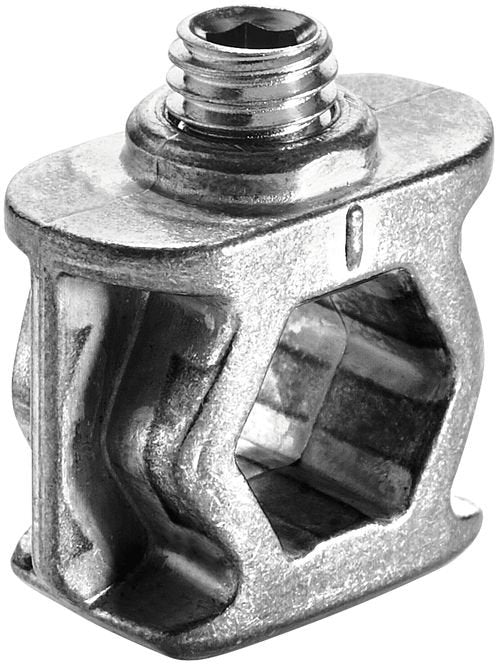

Festool Angle reducer SV-QA D14/32 1.0 kg

The DOMINO joint: Even faster connection. And if necessary, re-disassembly.

Strengths and benefits

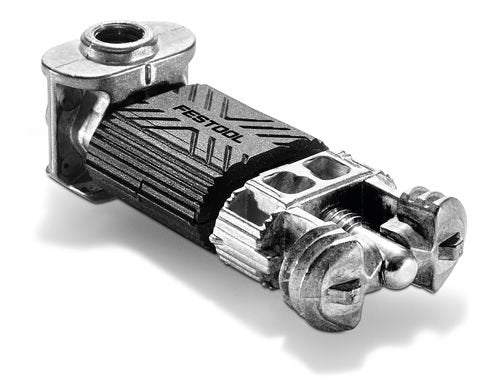

• The SV-QA D14 corner connector together with the SV-AB D14 fixing bolt and the SV-SA D14 self-tensioning sleeve form the corner joint, or with the SV-DB D14 double fixing bolt – a flat joint. If desired, the SV-V D14 seal is used for flat joints. All parts are included either in the DOMINO joint system Systainer DOMINOVerb SV-SYS D14, or can be ordered as an EV/32-set, FV/16-set or individually as single parts.
• The corner and flat joint system for the DOMINO XL DF 700 jointer makes stable, detachable joints possible for material thicknesses of at least 30 mm.
• For joining frames and supporting structures (corner joints) and panel connections (flat joints) that impress not only with the highest precision and stability, but also with maximum adaptability and unique efficiency.

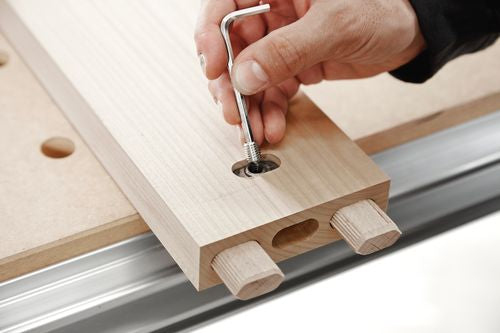

• Extremely fast through easy routing using the tool stops or pencil markings. No templates or other accessories required.
• Exceptional stability with dowel and clamping element for a secure connection. Greater approach and clamping range. Very high resistance to tension and load.
• Extremely adaptable and, if necessary, quickly detachable.
• With caps in three colors for a perfect finish on corner joints.

Product application

• For detachable furniture constructions, such as beds, tables, etc.
• For the production of detachable flat joints in furniture construction, such as kitchen worktops, benches, etc.

• for DF 700
• including threaded inserts
• for processing with the DOMINO XL DF 700 dowel jointer
• from 30 mm material thickness

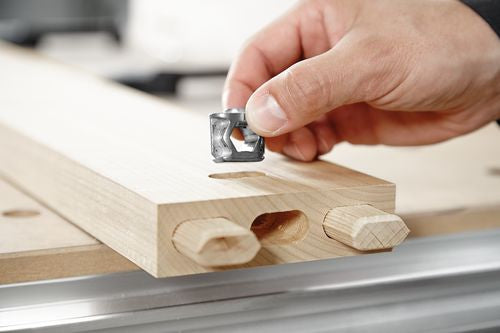

• serves as a counter and clamping element for fixing, respectively, double fixing bolts
• for soft or porous materials, such as chipboard assembly panels, the use of a seal for corner connectors SV-V D14 is recommended (from 35 mm material thickness - prevents the corner connector from penetrating the material)

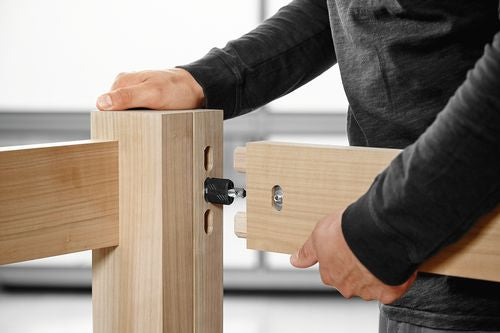

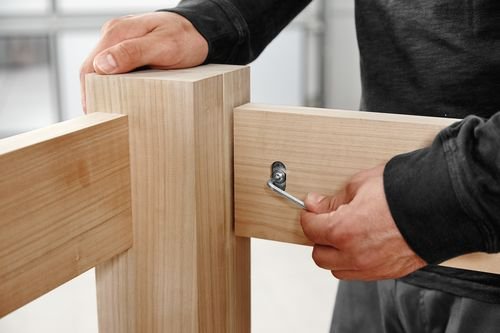

• in combination with self-tensioning sleeve SV-SA D14 and fixing bolt SV-AB D14 for the production of corner joints
• in combination with double fixing bolt SV-DB D14 for the production of flat joints

all-inclusive guarantee--> Find out more

Accessories

• Extension SV-V D14/32 (201498)
• Self-tensioning sleeve SV-SA D14/32 (201349)
• Fixing bolt SV-AB D14/32 (201350)
• Double fixing bolt SV-DB D14/16 (201352)
• Cap SV-AK D14 brn1/32 (201355)
• Cap SV-AK D14 brn2/32 (201356)

Related products

• DOMINO DF 700 EQ-Plus Dowel Jointer (576426)
