Festool Self-tightening Sleeve SV-SA D14/32 1.0 kg

The DOMINO joint: even faster connection. And if necessary, re-disassembly.

Strengths and benefits

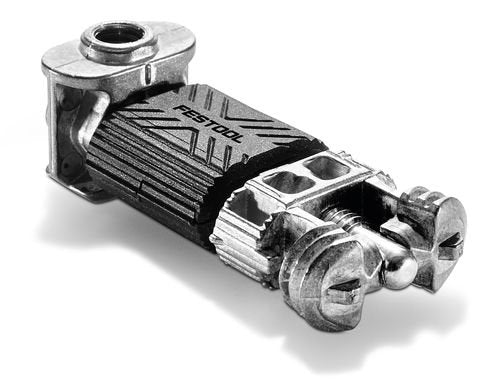

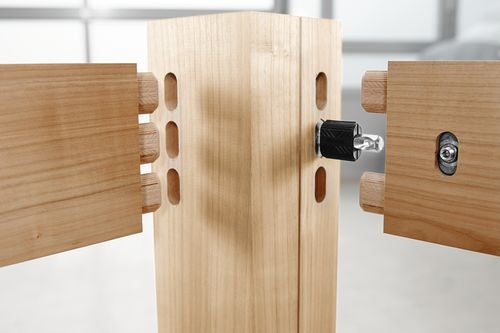

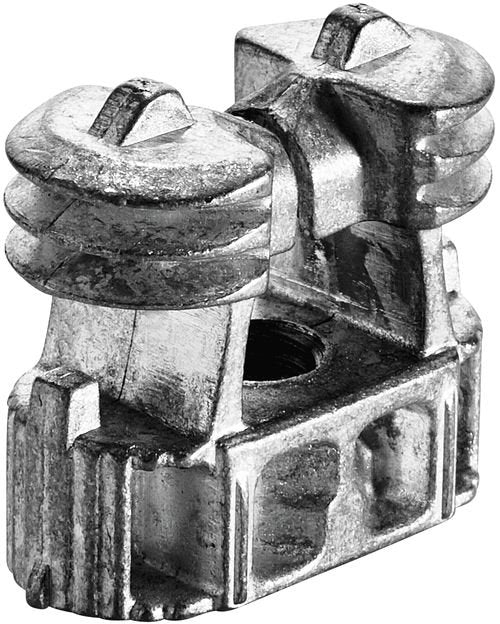

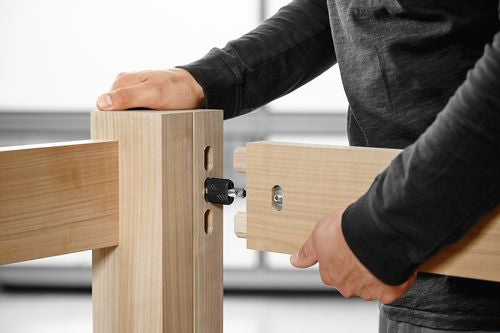

• The self-clamping sleeve SV-SA D14 together with the clamping bolt SV-AB D14 and the corner sleeve SV-QA D14 form the corner joint. All parts are available either in the DOMINO SV-SYS D14 joint systainer as an EV/32-piece set, or can be purchased individually as single parts
• The system for corner and flat joints for the DOMINO XL DF 700 router enables stable, detachable joints for material thicknesses of at least 30 mm
• For joining frames and support structures (corner joints) and panel joints (flat joints) that impress not only with the highest precision and stability, but also with maximum adaptability and unique efficiency
• Extremely fast through easy routing using the tool stops or pencil markings. No templates or other accessories required
• Exceptional stability with dowel and clamping element for a strong connection. Wider approach and clamping range. Very high tensile and load resistance
• Extremely adaptable and, if necessary, quickly detachable
• With caps in three colours for a perfect finish on corner joints

Product application

• For stable, detachable furniture constructions, such as beds, tables, etc.
• The anchoring bolt SV-AB D14 secures the sleeve anchor by screwing it into the wood
• Optional for covering DOMINO routing holes: caps in silver, dark brown or light brown (SV-AK D14 slr, SV-AK D14 brn1 and SV-AK D14 brn2)

• for DF 700
• for processing with the DOMINO XL DF 700 dowel jointer
• for joining frames and support structures with a thickness of at least 30 mm
• in combination with clamping bolt SV-AB D14 and corner sleeve SV-QA D14 for making detachable corner joints

All-inclusive guarantee--> Learn more

Accessories

• Clamping bolt SV-AB D14/32 (201350)
• Corner sleeve SV-QA D14/32 (201351)

Related products

• DOMINO DF 700 EQ-Plus dowel jointer (576426)
